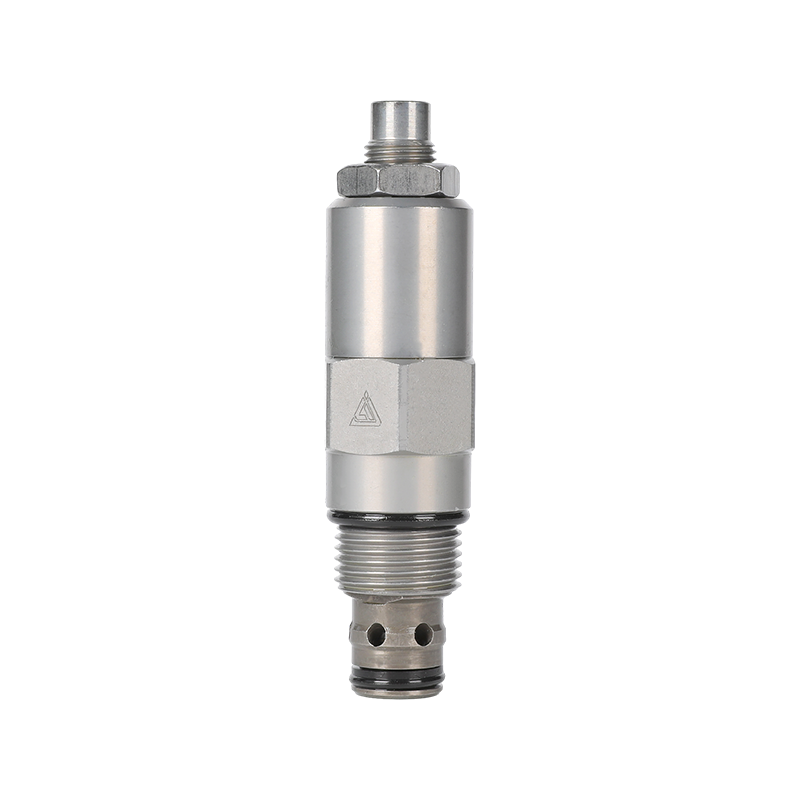

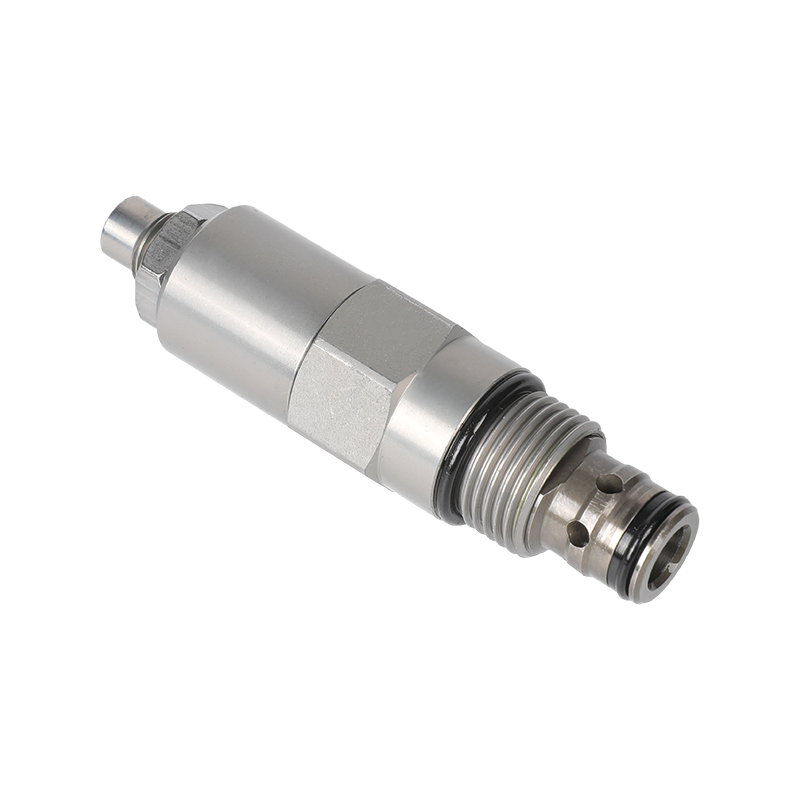

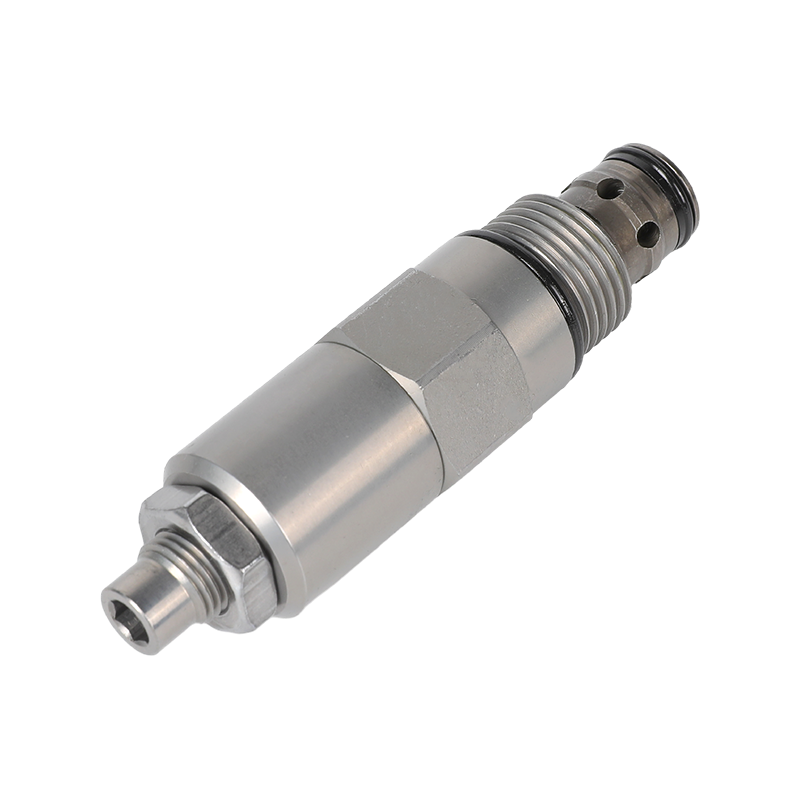

Overflow valve: pilot operated, slide valve type
Ordering model |
GRV10-26-X-Y/Z |
Functional symbols: |
|

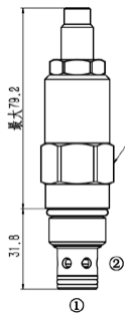

Unit: mm Thread insertion type, pilot type, slide valve relief valve, as a pressure limiting device. Under normal conditions, the oil flows from ① to ② and is closed until there is sufficient hydraulic pressure at ① to open the pilot valve. Then, the main valve core is pushed to move, causing the oil ① to flow towards ②. |
|||
Unit: mm S25.4 Maximum installation torque 33.9Nm |
|||
Technical Parameter |
|||
Rated pressure: 240bar |
|||
Rated flow rate: 113L/min |
|||
Jack: VC10-2 |
|||
Installation torque: 33.9Nm |
|||
Weight: 0.25kg |
|||
Operating oil temperature range: -40~120 ℃(nitrile rubber) |
|||
Definition of opening pressure: When the flow rate reaches 7.6L/min, the measured pressure value at point ① is bar |
|||
Media filtration accuracy: 20/18/14 ( requirement) |
|||
Closing pressure: 90% of opening pressure |
|||
Performance Curve |
Installation location requirement: unlimited |
||
Y |
Seal options |
||
N |
Nitrile rubber (standard) |
||
V |
VITON |
||
P |
polyurethane |
||
Y |
Voltage regulation range options |
||
4 |
6.9 ~ 27.6bar |
||
15 |
10.3 ~ 103.4bar |
||
30 |
27.6 ~ 206.9bar |
||
Z |
Set pressure options |
||
Omitting as standard, intermediate value of voltage regulation range |
|||
160 |
160bar |
