GPR10-36 Pressure relief valve

PREV：GRV10-26 Pilot sequence valve NEXT：GRVS10-20 Direct acting relief valve
Contact Us

Pressure relief valve

Ordering model	GPR10-36-X-Y/Z	Functional symbols:
Unit: mm Screw insertion type, direct acting type, three-way slide valve type, pressure reducing relief valve, oil flows in both directions ② and ①, while the spring chamber remains at the oil outlet ③ for oil leakage. When the pressure at point ① reaches the set value of the valve, the movement of the valve core limits the oil intake at point ②, thereby regulating the pressure at point ①. In this mode, when the pressure at ① exceeds the pressure reduction setting value, oil can be drained from ① to ③.

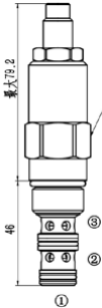

Unit: mm S25.4 Maximum installation torque 33.9Nm
		Technical Parameter
		Rated pressure: 240bar
		Rated flow rate: 56L/min
		Jack: VC10-3
		Installation torque: 33.9Nm
		Weight: 0.22kg
		Operating oil temperature range: -40~120 ℃(nitrile rubber)
		Internal leakage rate: At 90% opening pressure, the internal leakage rate is 82mL/min
		Media filtration accuracy: 20/18/14 ( requirement)

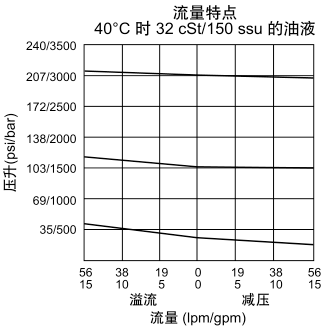

Performance Curve		Installation location requirement: unlimited
		Y	Seal options
		N	Nitrile rubber (standard)
		V	VITON
		P	polyurethane
		Y	Voltage regulation range options
		4	5.5 ～ 27.6bar
		15	20.7 ～ 103bar
		30	27.6 ～ 207bar
		Z	Set pressure options
			Omitting as standard, intermediate value of voltage regulation range
		160	160bar
