Pressure Control Valves

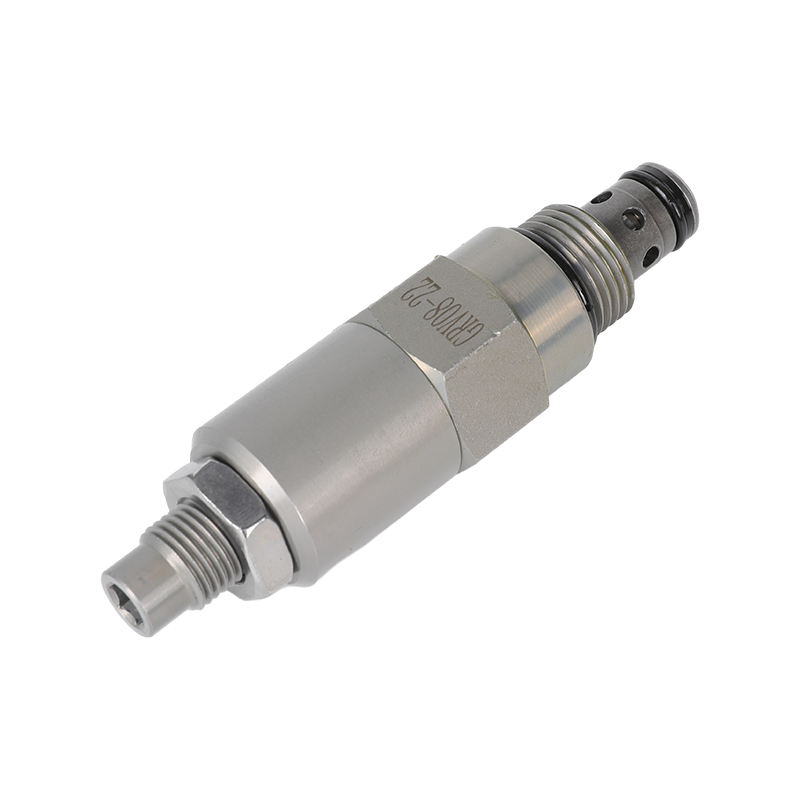

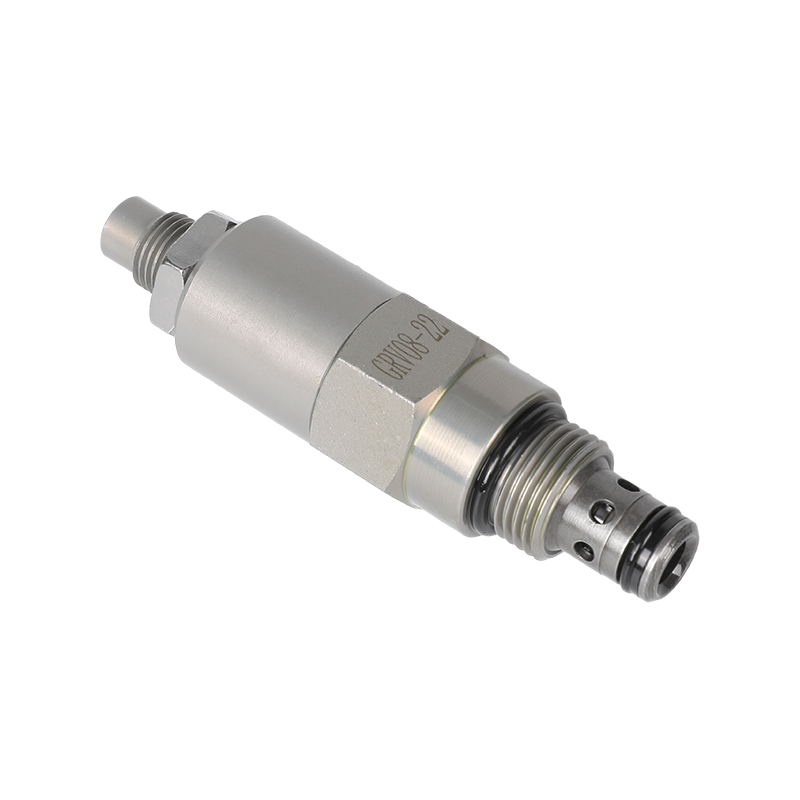

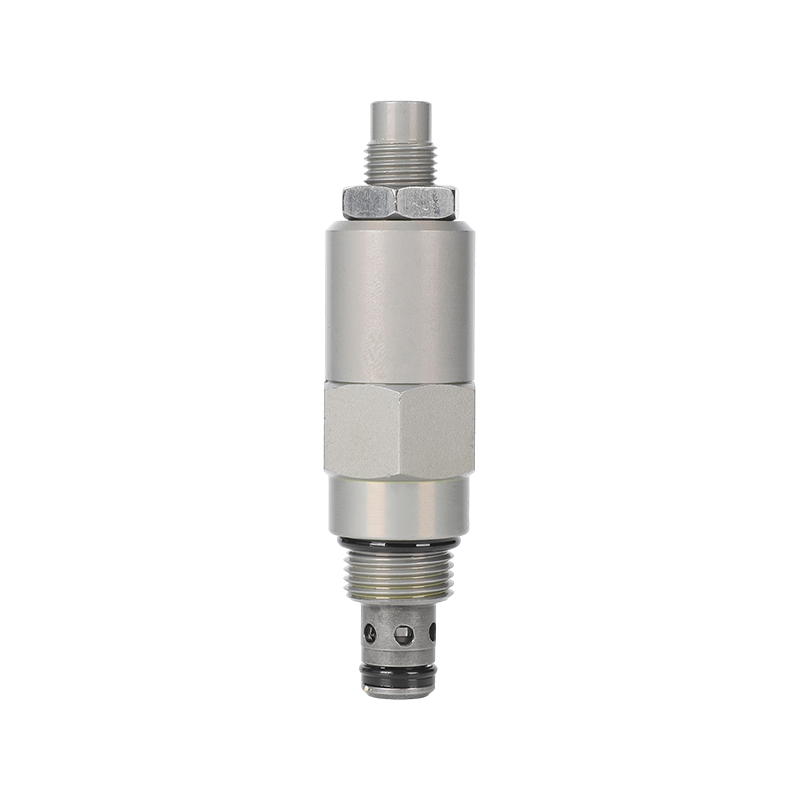

GRV08-22 Differential relief valve
Overflow valve: direct acting, differential
|
Ordering model |
GRV08-22-X-Y/Z |
Functional symbols: |
|
|
Unit: mm Thread insertion type, direct acting type, seat valve type relief valve, suitable for hydraulic circuits that require minimal internal leakage. Under normal conditions, the oil flows from ② to ① and is closed until ② receives sufficient hydraulic pressure to overcome the spring force and remove the valve core from the valve seat. |
|
||
|

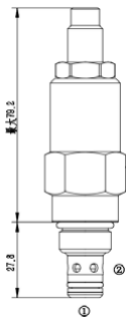

Unit: mm S25.4 Maximum installation torque 27.2Nm
|
|||
|
Technical Parameter |
|||
|
Rated pressure: 240bar |
|||
|
Rated flow rate: 30L/min |
|||
|
Jack: VC08-2 |
|||
|
Installation torque: 27.2Nm |
|||
|
Weight: 0.15kg |
|||
|
Operating oil temperature range: -40~120 ℃(nitrile rubber) |
|||
|
Internal leakage: 0.25mL/ min@85 %Opening pressure |
|||
|
Media filtration accuracy: 20/18/14 ( requirement) |
|||
|
Definition of opening pressure: When the flow rate reaches 0.95mL/min, the measured pressure value at point ② is bar |
|||
|
Closing pressure: 90% of opening pressure |
|||
|

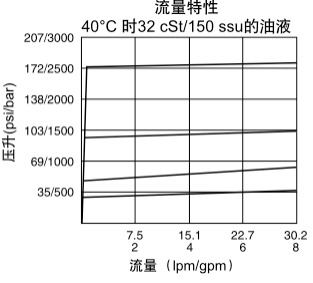

Performance Curve |
Installation location requirement: unlimited |
||
|
Y |
Seal options |
||
|
N |
Nitrile rubber (standard) |
||
|
V |
VITON |
||
|
P |
polyurethane |
||
|
Y |
Voltage regulation range options |
||
|
4 |
3.5 ～ 27.6bar |
||
|
7 |
6.9 ～ 52bar |
||
|
13 |
6.9 ～ 117.2bar |
||
|
26 |
17.2 ～ 220.7bar |
||
|
Z |
Set pressure options |
||
|
Omitting as standard, intermediate value of voltage regulation range |
|||
|
160 |
160bar |
||
