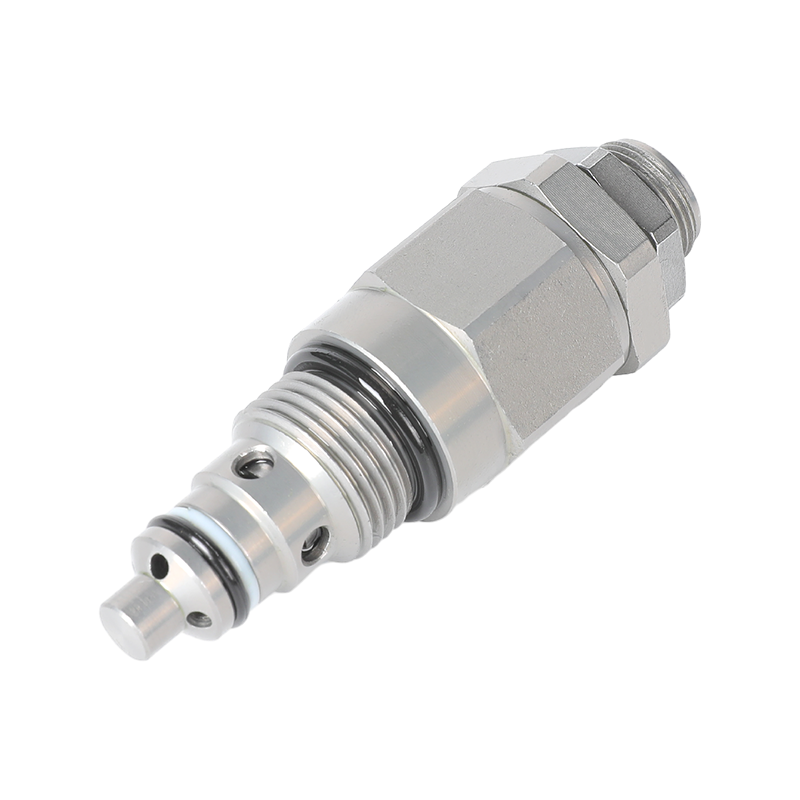

GRVS08-20 Direct acting relief valve

PREV：GMHDBN16-20 Direct acting relief valve Anti-cavitation Poppet type NEXT：GRV08-22 Differential relief valve
Contact Us

Overflow valve: direct acting, cone valve

Ordering model	GRVS08-20-X-Y/Z	Functional symbols:
Unit: mm Thread insertion type, direct acting type, seat valve type relief valve, suitable for hydraulic circuits that require minimal internal leakage. Under normal conditions, the oil flows from ① to ② and is sealed until ① receives sufficient hydraulic pressure to overcome the spring force and remove the valve core from the valve seat.

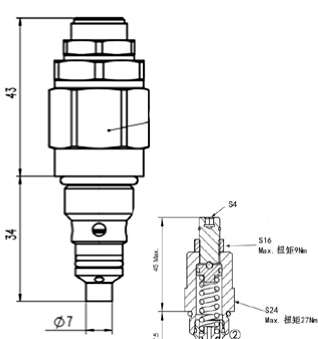

Unit: mm S24 Maximum installation torque 50Nm
		Technical Parameter
		Rated pressure: 350bar
		Rated flow rate: 30L/min
		Jack: VC08-2
		Installation torque: Maximum 50Nm
		Weight: 0.11kg
		Operating oil temperature range: -40~120 ℃(nitrile rubber)
		Internal leakage: 0.25mL/ min@75 %Opening pressure
		Media filtration accuracy: 20/18/14 ( requirement)
		Definition of opening pressure: When the flow rate reaches 0.95mL/min, the measured pressure value at point ① is bar
		Closing pressure: 80% of opening pressure

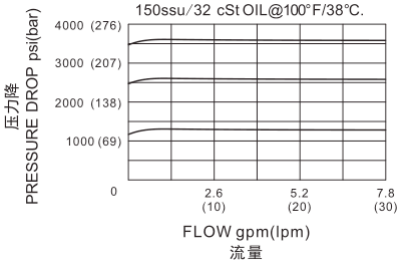

Performance Curve		Installation location requirement: unlimited
		Y	Seal options
		N	Nitrile rubber (standard)
		V	VITON
		P	polyurethane
		Y	Voltage regulation range options
		18	20 ～ 125bar
		26	40 ～ 180bar
		50	180 ～ 350bar
		Z	Set pressure options
			Omitting as standard, intermediate value of voltage regulation range
		160	160bar
