Solenoid Valves

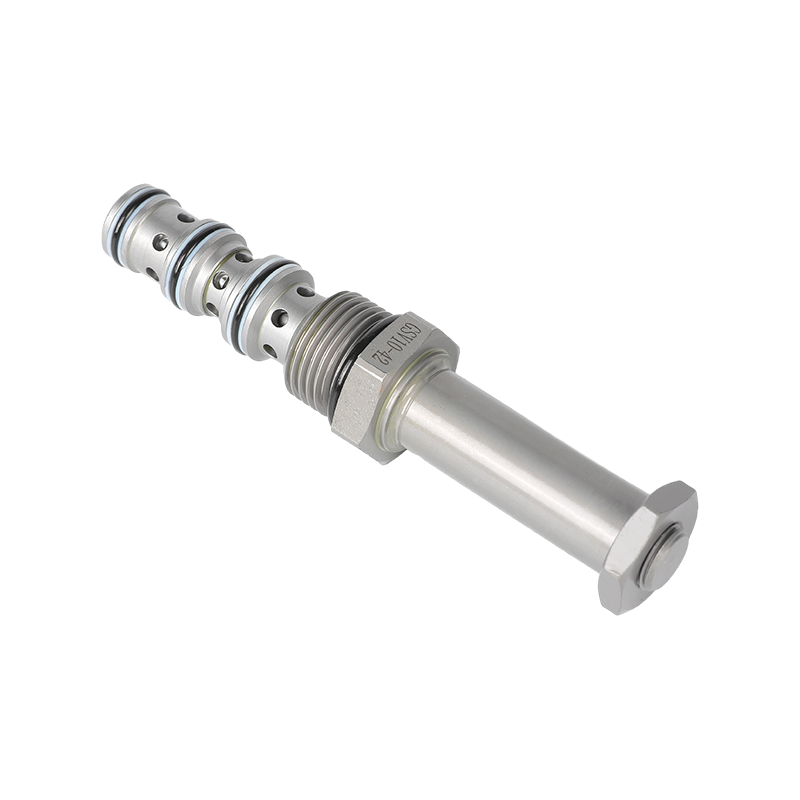

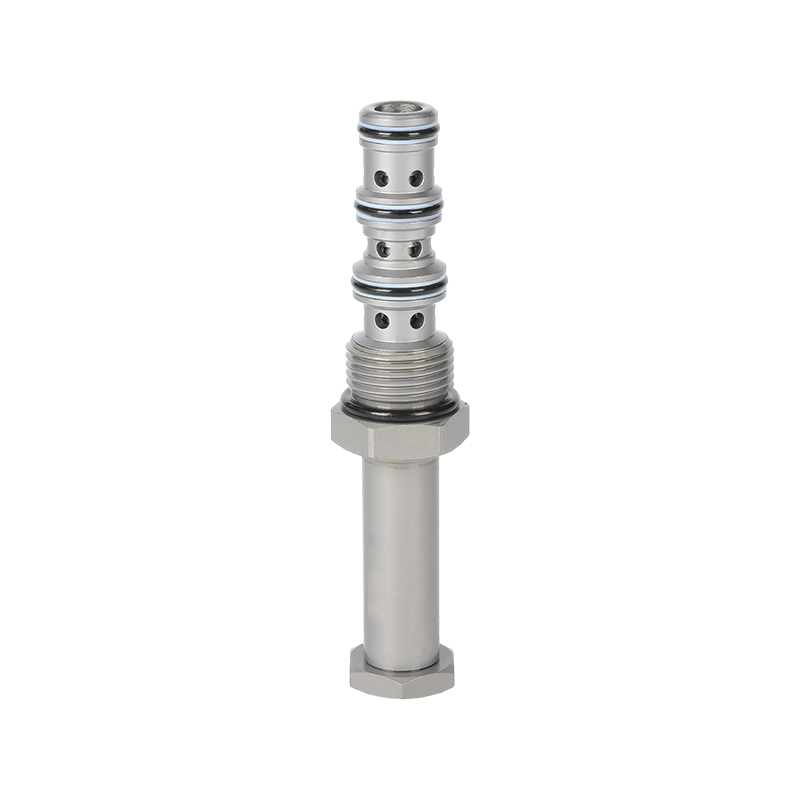

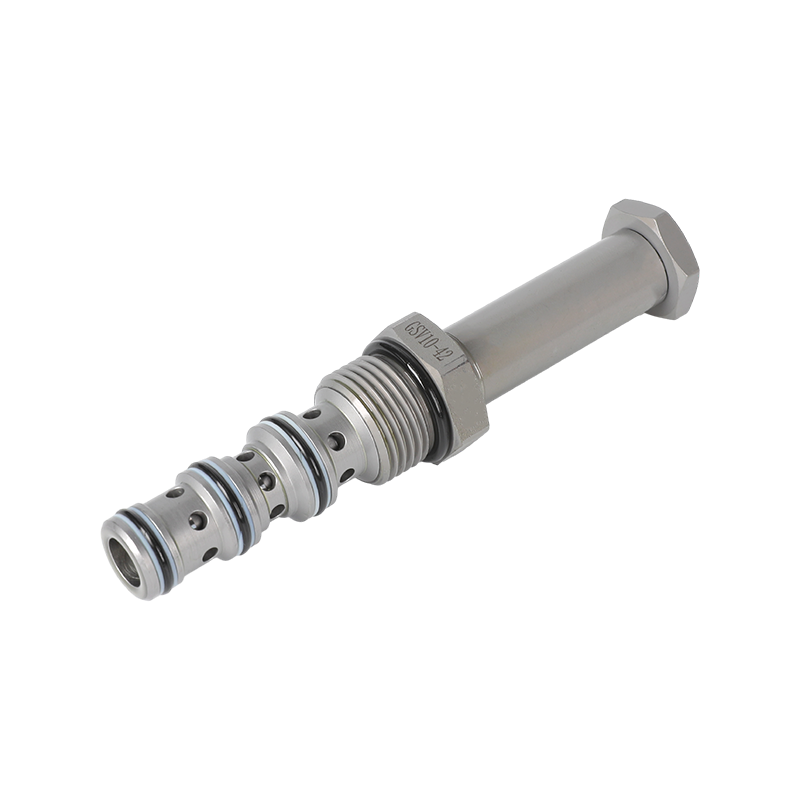

GSV10-42 Solenoid valve
Electromagnetic valve: two position four-way, slide valve
|
Ordering model |
GSV10-42X-0-Y-Z M N |
Functional symbols: |
|||
|
Unit: mm Electromagnetic drive, 2-position 4-way, slide valve, threaded plug-in type, used for directional switching in oil circuits. |
|
||||
|
Unit: mm S19 Maximum installation torque of 6.8Nm
S25.4 Maximum installation torque 33.9Nm |
|||||
|
Technical Parameter |
|||||
|
Rated pressure: 210bar |
|||||
|
Rated flow rate: see performance chart |
|||||
|
Pressure resistance: 350bar |
|||||
|
Jack: VC10-4 |
|||||
|
Installation torque: 33.9Nm |
|||||
|
Weight: 0.3kg |
|||||
|
Operating oil temperature range: -40~120 ℃ (nitrile rubber) |
|||||
|
Internal leakage rate: 82mL/min@210bar |
|||||
|
Media filtration accuracy: 20/18/14 ( requirement) |
|||||
|
Working voltage range of coil: 1 ± 15% rated voltage. For special working conditions, please consult sales and technical personnel |
|||||
|
The coil needs to be ordered separately |
|||||
|
Installation location requirement: unlimited |
|||||
|

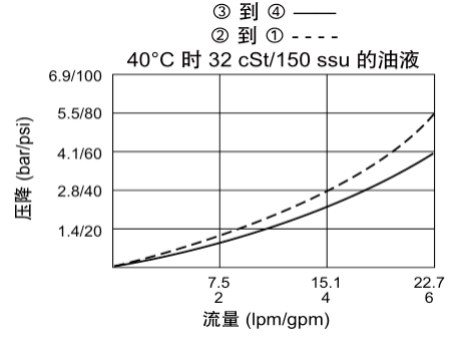

Performance Curve |
|
||||
|
X |
Additional options |
||||
|
Space is not included |
|||||
|
S |
Stainless steel filter 80 mesh |
||||
|
M |
Emergency manual control, knob |
||||
|
Y |
Seal options |
||||
|
N |
Nitrile rubber (standard) |
||||
|
V |
VITON |
||||
|
P |
Polyurethane |
||||
|
M |
Coil options |
N |
Terminal option |
Z |
Set pressure options |
|
D |
Standard coil |
G |
Hermann plug DIN43650 |
12 |
12V DC |
|
E |
E-shaped coil |
R |
Dechi plug DT04-2P |
14 |
14V DC |
|
L |
Double conductor |
20 |
20V DC |
||
|
L/W |
Wire with AMP connector |
24 |
24V DC |
||
|
S |
Double flat head |
220 |
220V DC |
||
