Flow Control Valves

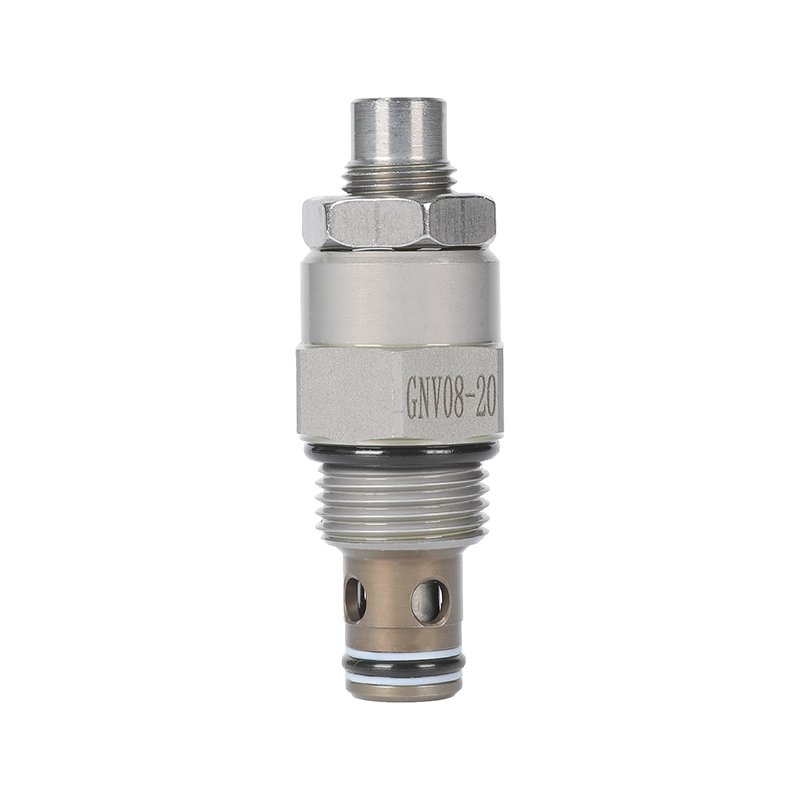

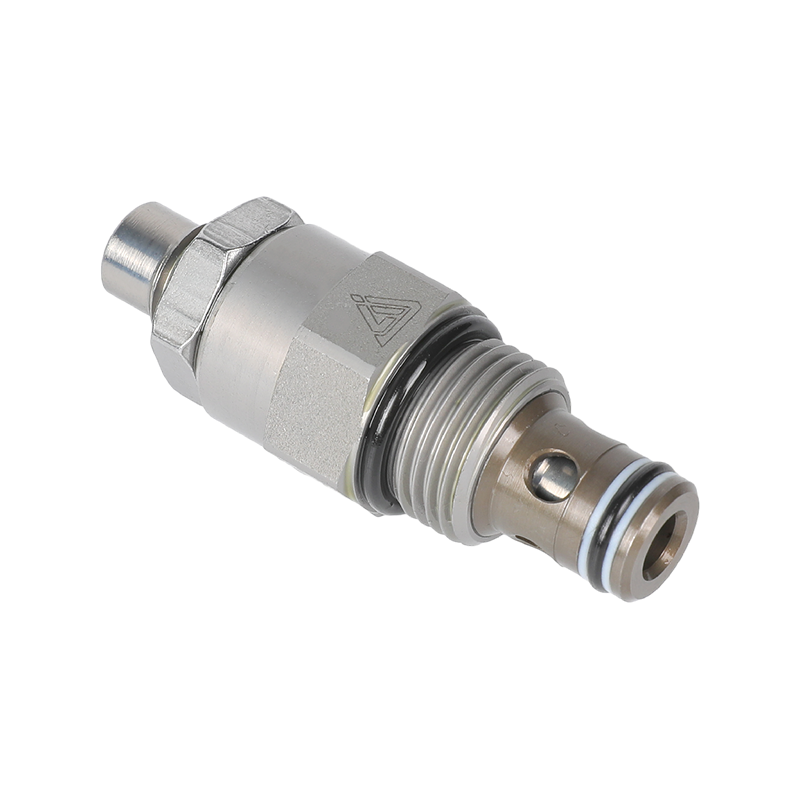

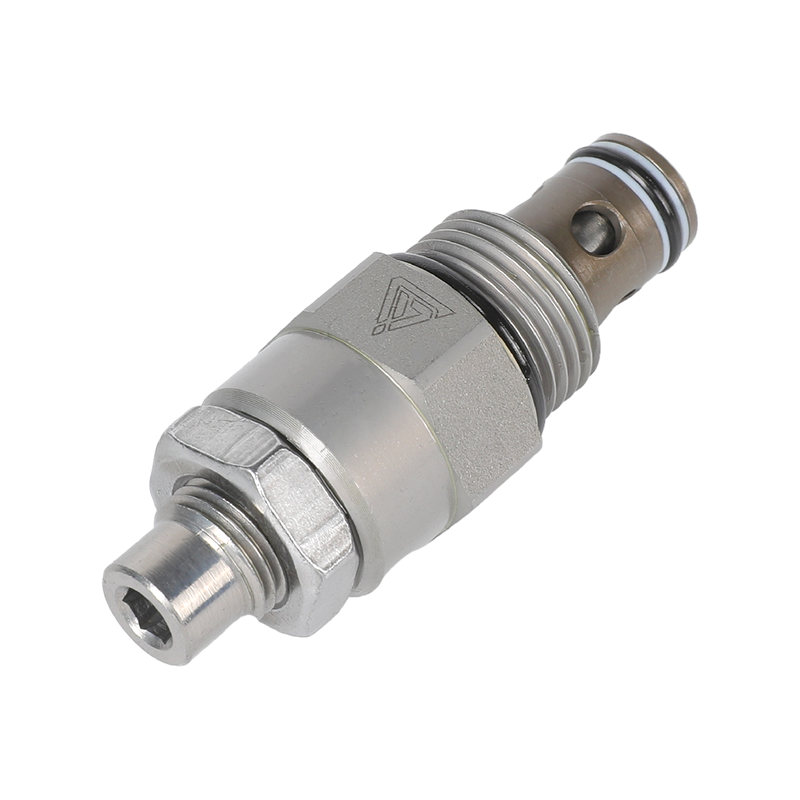

GNV08-20 Throttle valve
Flow valve: cone valve
|
Ordering model |
GNV08-20X-0-Y |
Functional symbols: |
|
|
Unit: mm Thread insertion type, variable throttle hole, throttle valve. When rotating the regulator counterclockwise, the throttle hole can be moved from fully locked to fully open. |
|
||
|
Unit: mm
Maximum torque of 6.8Nm
S22.4 Maximum torque of 27.2Nm |
|||
|
Technical Parameter |
|||
|
Rated pressure: 240bar |
|||
|
Rated flow rate: see performance chart |
|||
|
Jack: VC08-2 |
|||
|
Installation torque: 40.6Nm |
|||
|
Weight: 0.15kg |
|||
|
Operating oil temperature range: -40~120 ℃ (nitrile rubber) |
|||
|
Internal leakage: 0.25mL/ min@210bar |
|||
|
Media filtration accuracy: 20/18/14 ( requirement) |
|||
|
Adjusting torque: When the pressure is 7 bar, the required torque is 0.56 Nm; When the pressure is 210 bar, the required torque is 5.41 Nm. |
|||
|
When fully opened for 3.5 turns and with a nominal pressure difference of 7 bar, the flow rate is 42L/min. |
|||
|

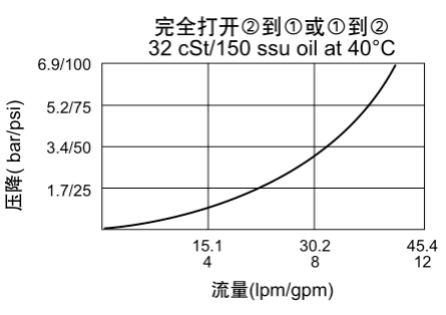

Performance Curve |
|
||
|
Y |
Adjustment options |
||
|
A |
1/4 inch hex head |
||
|
B |
1-1/2 inch diameter, aluminum alloy handle |
||
|
C |
Option A, with nut cover |
||
| Y |
Seal options |
||
| N | Nitrile rubber (standard) | ||
| V | VITON | ||
| P | Polyurethane | ||
